1012

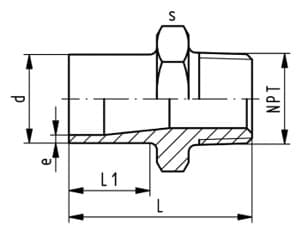

PVDF HP Adaptor nipple
1/2"-2"
| 產品編號 | 名稱 | d(mm) | Thread Type | PN(bar) | e(mm) | L(mm) | L1(mm) | s(mm) |
|---|---|---|---|---|---|---|---|---|
| 735914306 | PVDF HP Adaptor nipple 1/2" | 20 | NPT | 16 | 1.9 | 53 | 28 | 32 |
| 735914307 | PVDF HP Adaptor nipple 3/4" | 25 | NPT | 16 | 1.9 | 55 | 28 | 36 |
| 735914308 | PVDF HP Adaptor nipple 1" | 32 | NPT | 16 | 2.4 | 57 | 28 | 46 |
| 735914309 | PVDF HP Adaptor nipple 1-1/4" | 40 | NPT | 16 | 2.4 | 60 | 28 | 55 |
| 735914310 | PVDF HP Adaptor nipple 1-1/2" | 50 | NPT | 16 | 3 | 63 | 28 | 65 |
| 735914311 | PVDF HP Adaptor nipple 2" | 63 | NPT | 16 | 3 | 69 | 29 | 75 |
