Index / Products
1052

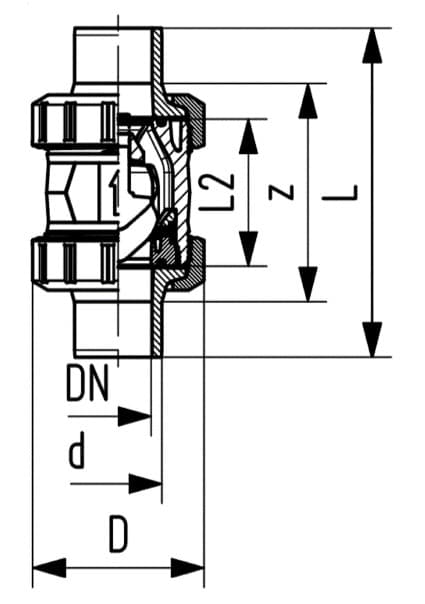

PP Check Valve Type561 EPDM
1/2"-2"
| id | name | d(mm) | PN(bar) | D(mm) | L(mm) | L2(mm) | e(mm) |
|---|---|---|---|---|---|---|---|
| 167561082 | PP Check Valve Type561 EPDM 1/2" | 20 | 10 | 50 | 130 | 56 | 1.9 |
| 167561083 | PP Check Valve Type561 EPDM 3/4" | 25 | 10 | 58 | 143 | 65 | 2.3 |
| 167561084 | PP Check Valve Type561 EPDM 1" | 32 | 10 | 68 | 150 | 71 | 2.9 |
| 167561085 | PP Check Valve Type561 EPDM 1-1/4" | 40 | 10 | 84 | 171 | 85 | 3.7 |
| 167561086 | PP Check Valve Type561 EPDM 1-1/2" | 50 | 10 | 97 | 191 | 89 | 4.6 |
| 167561087 | PP Check Valve Type561 EPDM 2" | 63 | 10 | 124 | 220 | 101 | 5.8 |
